Richelieu SLIDE Left & Right Panel Caster with Break – 80954
$51.27
Unidirectional caster for panels from 19mm (3/4”) to 30mm (1-3/8”) thick
Unidirectional Caster with break is suitable for drawers, beds, or other type of furniture. The support, on which the rubber tire is fitted, is made of nylon.
The wheel is made of stain-resistant polyurethane rubber tread suitable for all types of flooring.
The wheels are packaged in pairs (right and left side versions) and equipped with a brake.
TECHNICAL SPECIFICATIONS
Product number
80954018100
Load Capacity Per Caster
Max. 50 kg

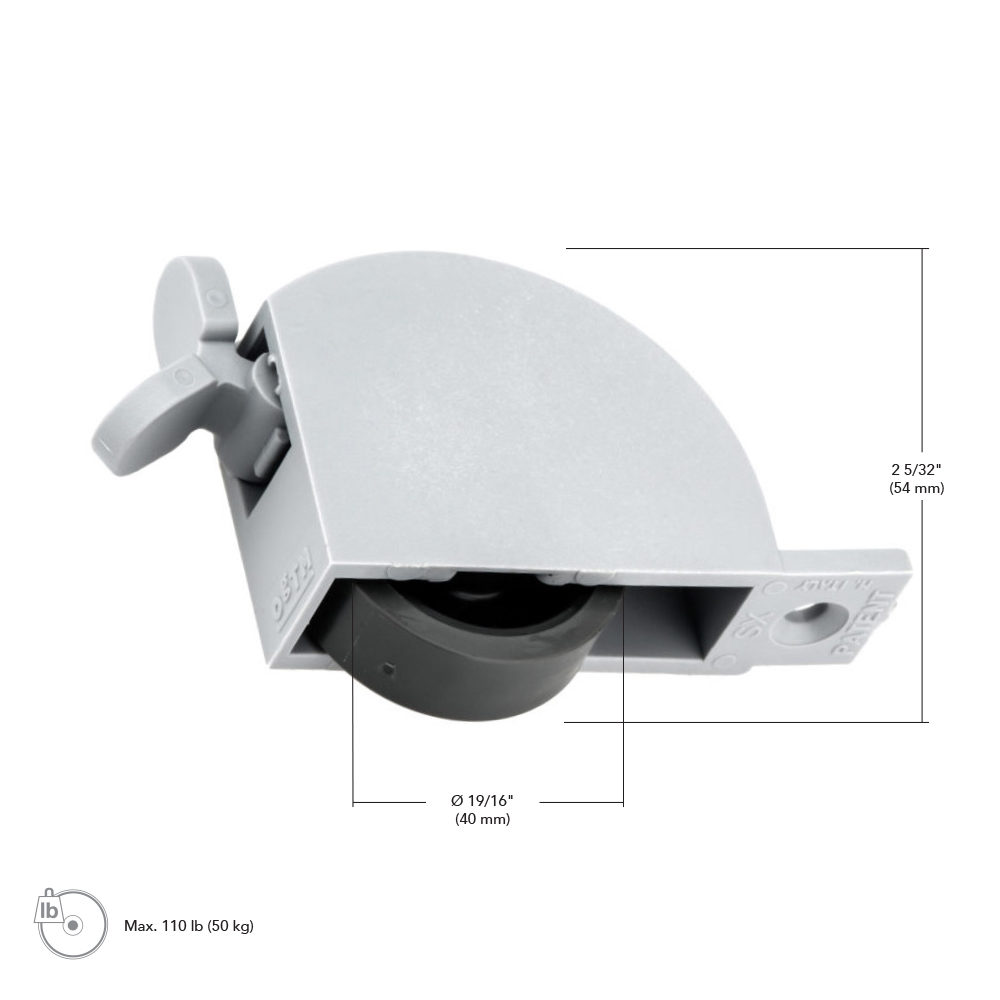

Wheel Diameter
40 mm
Total Height
54.5 mm
Tread Width
14 mm
Fastening Type
Fixed
Mounting Type
Panels
Features
With Brake, Unidirectional
Panel Thickness
19 to 30 mm
Material
Engineering Plastic
Recommended Surfaces
Carpet, Wood/Planking, Tile/Ceramic/ Linoleum, Hardwood/Laminate
Finish
Gray
IMPORTANT INFORMATION
– Fastening required. Attach screws above the caster using tweezers. Easy operation.
– R37 cut out radius on panel
– Drilling dimensions:
Length: 45 mm, Width: 18 mm, Height: 31.5 mm
– R37 cut out radius on panel
– Drilling dimensions:
Length: 45 mm, Width: 18 mm, Height: 31.5 mm
