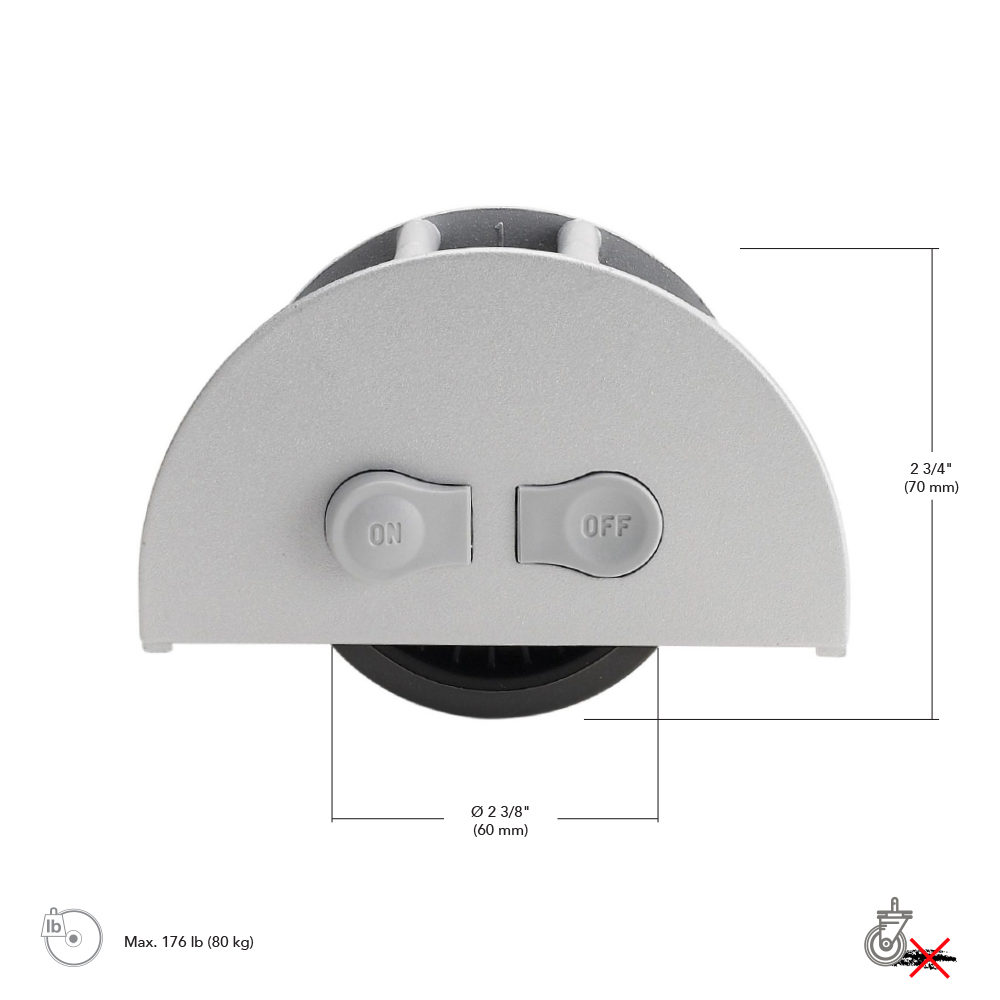

Richelieu ZAMA Panel Caster - 80940
Richelieu ZAMA Panel Caster - 80940 - Image 2
Richelieu ZAMA Panel Caster - 80940 - Image 3
Richelieu ZAMA Panel Caster - 80940 - Image 4
Richelieu ZAMA Panel Caster - 80940 - Image 5
Richelieu ZAMA Panel Caster - 80940 - Image 6
Richelieu ZAMA Panel Caster - 80940 - Image 7
Richelieu ZAMA Panel Caster - 80940 - Image 8

Richelieu ZAMA Panel Caster – 80940

$39.06

SKU: Richelieu ZAMA Panel Caster - 80940 Categories: ,

M07 Series Mortise Locks | Richelieu Hardware

Unidirectional caster for panels greater than 30 mm (1-3/16”) thick

ZAMA is a built-in unidirectional caster, unique on the market.
It has a semi-circular shape consisting of two molded shells of marine aluminum enclosing. The inside wheel is made of stain-resistant polyurethane rubber, carefully designed to be positioned under panels for beds, drawers, or other furniture.

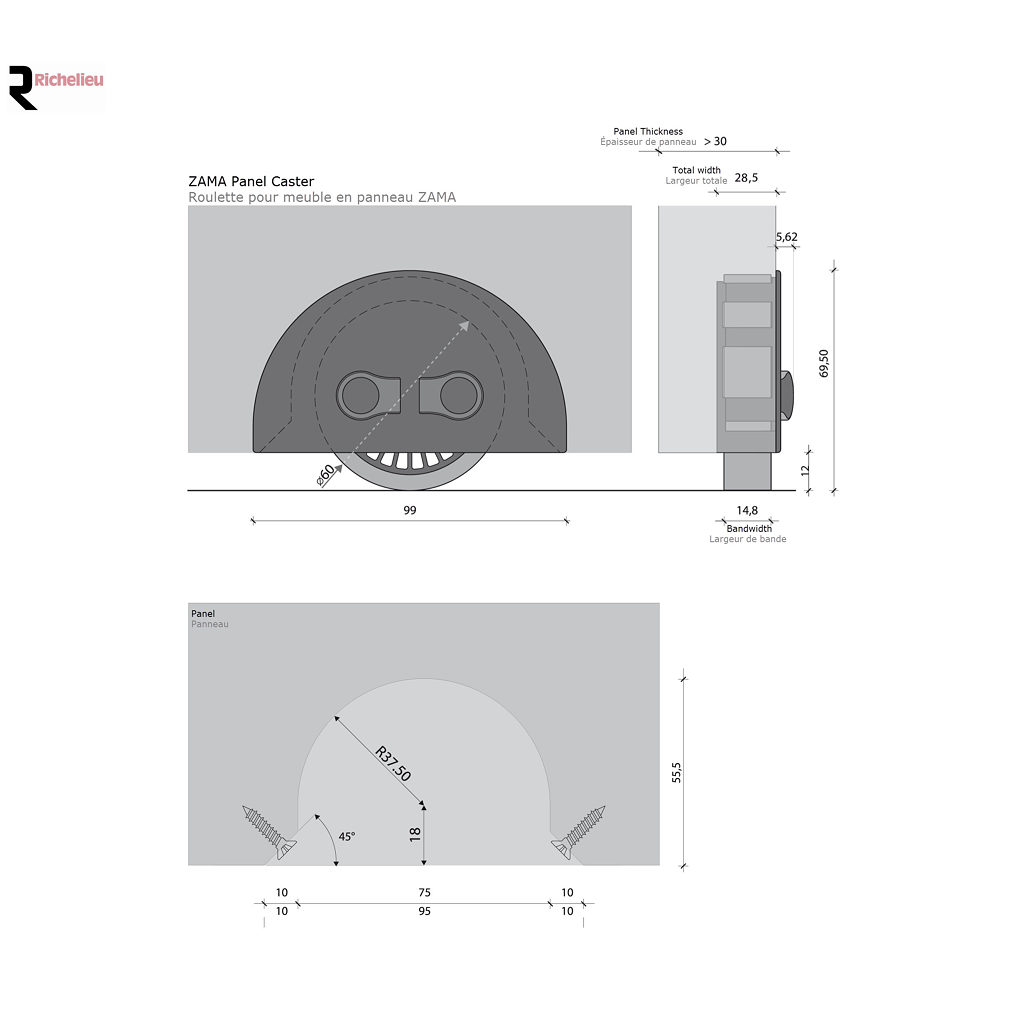

TECHNICAL SPECIFICATIONS

Product number
809405010
Load Capacity Per Caster
Max. 80 kg
Wheel Diameter
60 mm
Total Height
69.5 mm
Tread Width
14.8 mm
Fastening Type
Fixed
Mounting Type
Panels
Features
With Brake, Unidirectional
Panel Thickness
Min. 30 mm
Material
Engineering Plastic
Recommended Surfaces
Carpet, Wood/Planking, Tile/Ceramic/ Linoleum, Hardwood/Laminate
Finish
Gray

ADVANTAGES AND BENEFITS

– Nylon wheel hub.
– Soft, stain-proof thermoplastic gray rubber wheel, suitable for all types of flooring.
– Support made of Zamak.

APPLICATION

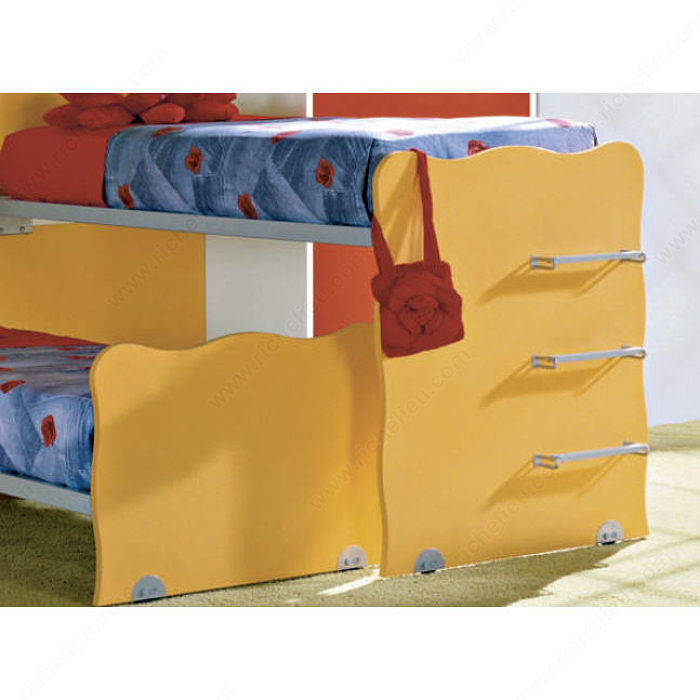

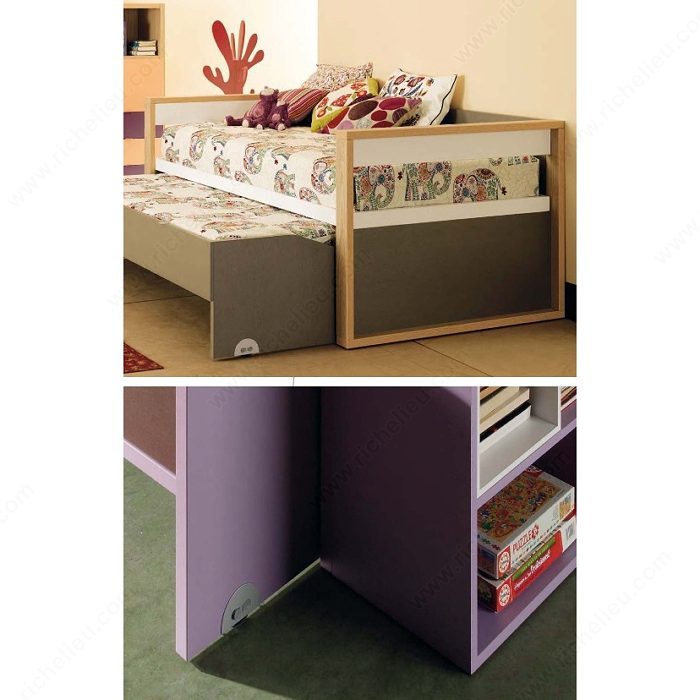

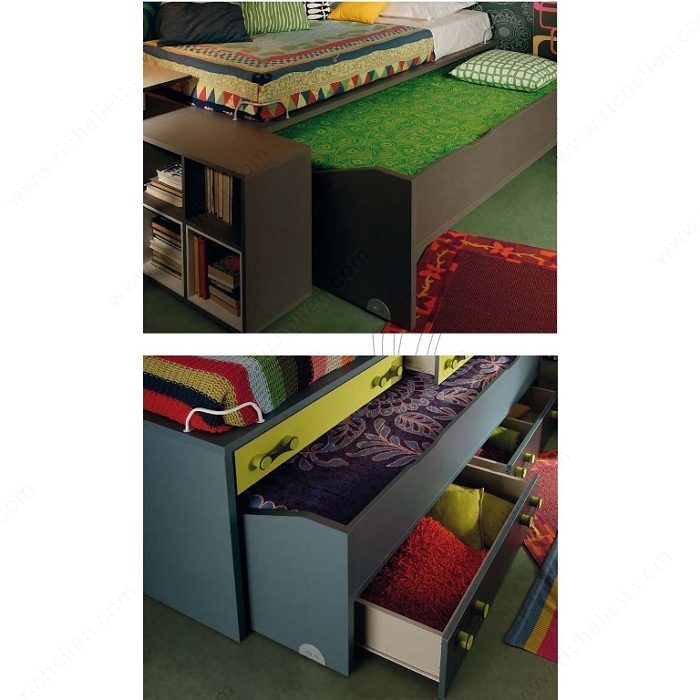

This caster can be used for dressers, cabinets, or small beds.
No limitation of panel thickness if the panel is thicker than 30 mm (1-3/16″).
